Atrium Jands Stage CL

This page explains the basic layout of the Atrium Jands Stage CL console, how to change wash light color, and how to reload the Atrium show file if the console is not behaving as expected.

Console Overview

The Stage CL is a fairly basic console with added color selection capabilities.

As with any lighting console, make sure the GM and Master faders are set to full before setting intensity for individual channels.

For simplicity:

  • all key lights are patched to Channel 1
  • all wash lights are patched to Channel 2

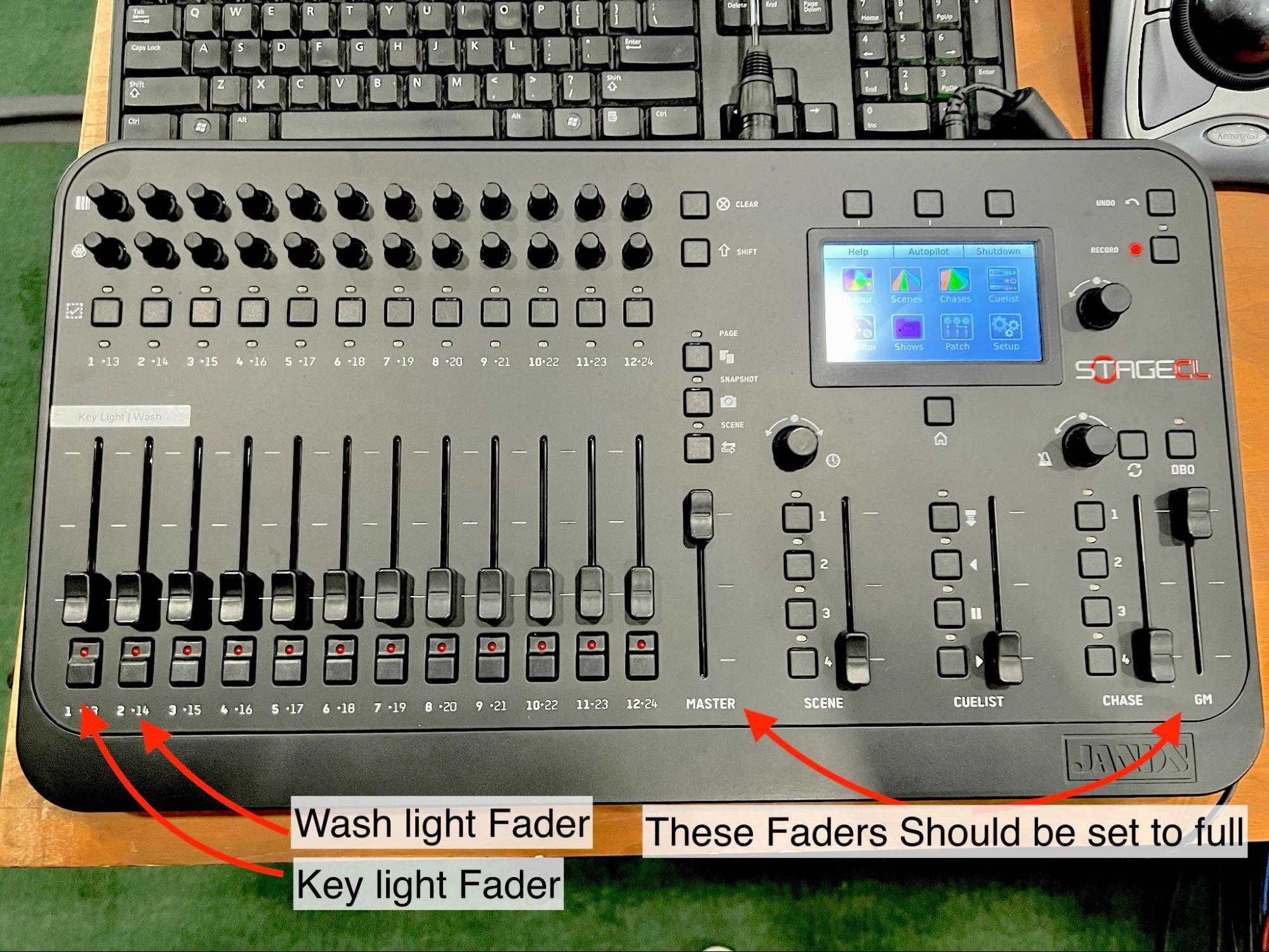

Jands Stage CL console overview with key light, wash light, GM, and Master faders labeled

Changing the Wash Light Color

You can change the wash lights in two ways.

Option 1: Use Channel 2 Controls

  • Use the Color knob on Channel 2 to cycle through the color options.
  • Use the Saturation knob to change the color saturation.

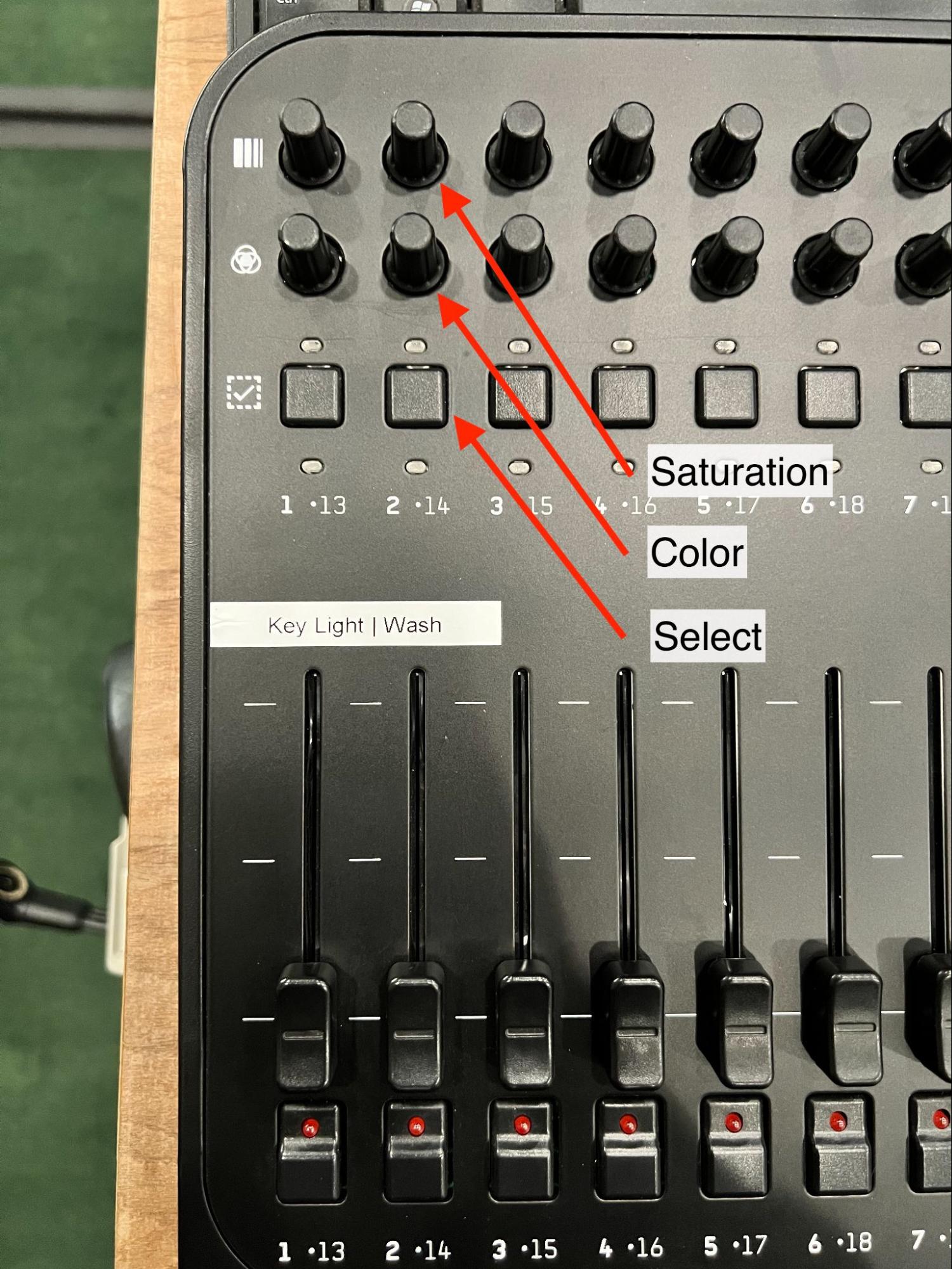

Channel 2 controls showing Select, Color, and Saturation

Option 2: Use the Color Preset Menu

  • Press the Select button on Channel 2.
  • Go to the Colour preset menu.
  • Select the color you want.

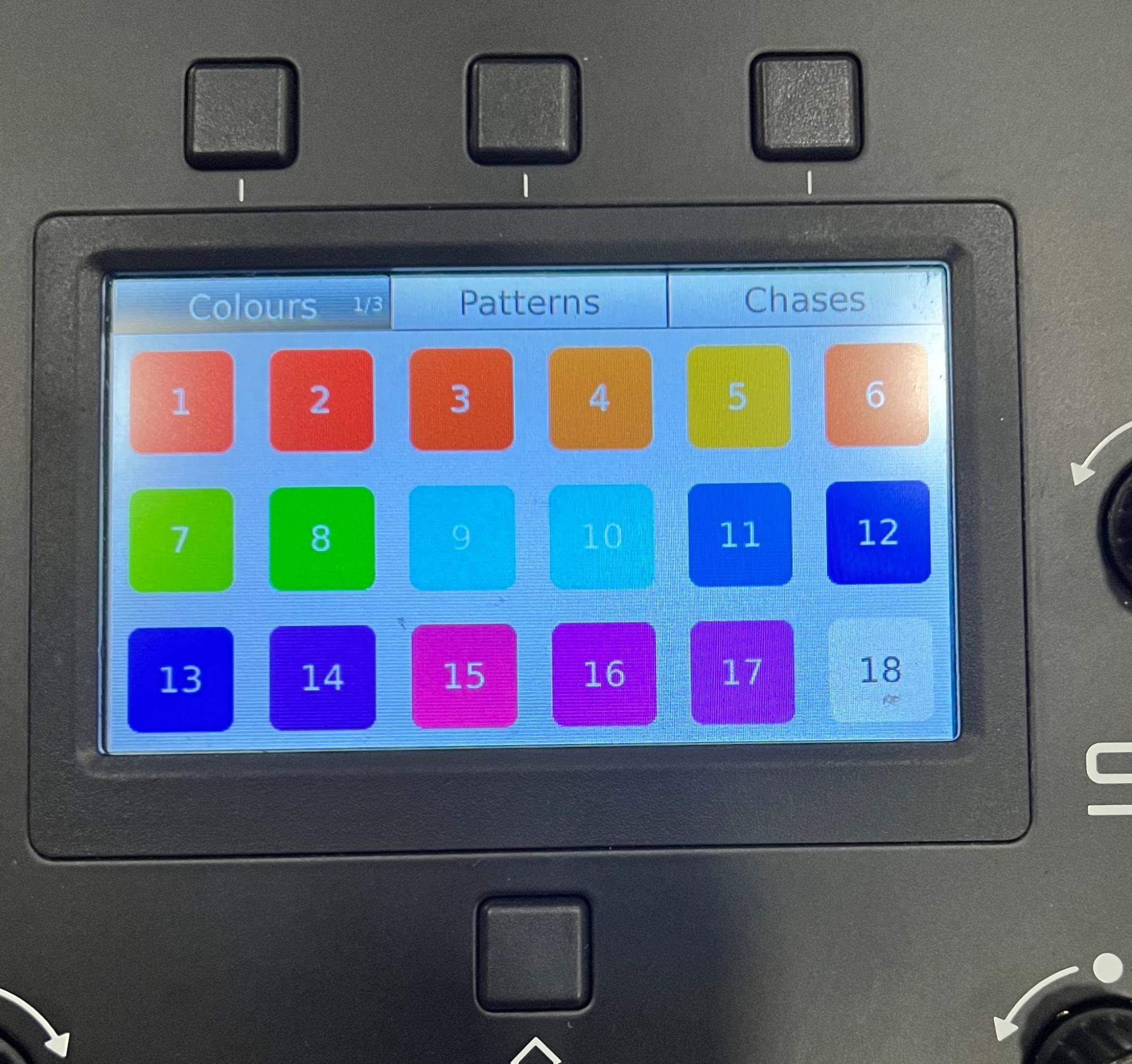

Colour presets screen on the Jands Stage CL

Loading the Atrium Show

If the console is not functioning the way you expect, load the Atrium show file.

  1. From the touchscreen, select Shows.
  2. Choose the Atrium show file.
  3. Select Load.

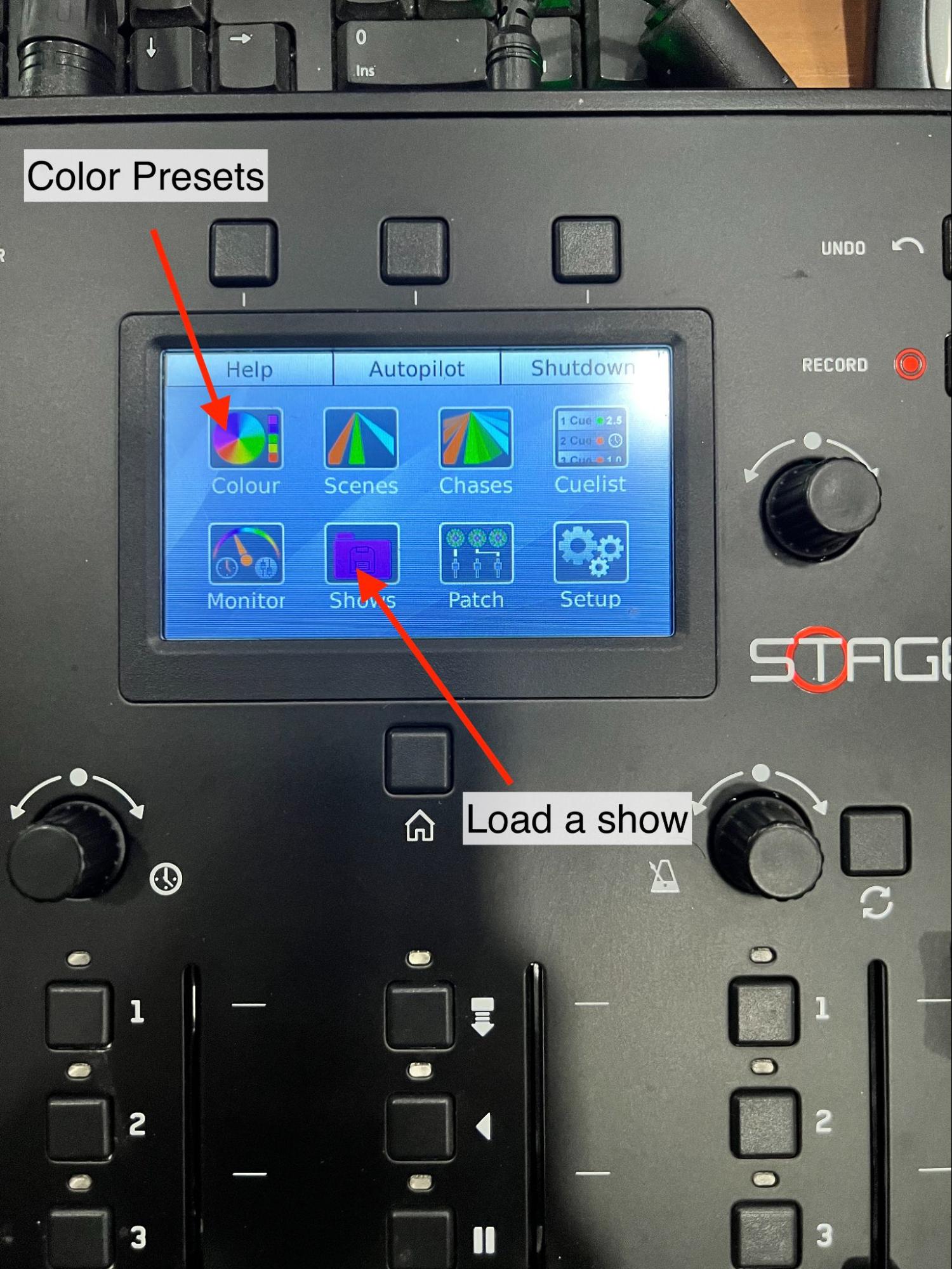

Stage CL home screen showing the Shows menu and Colour presets

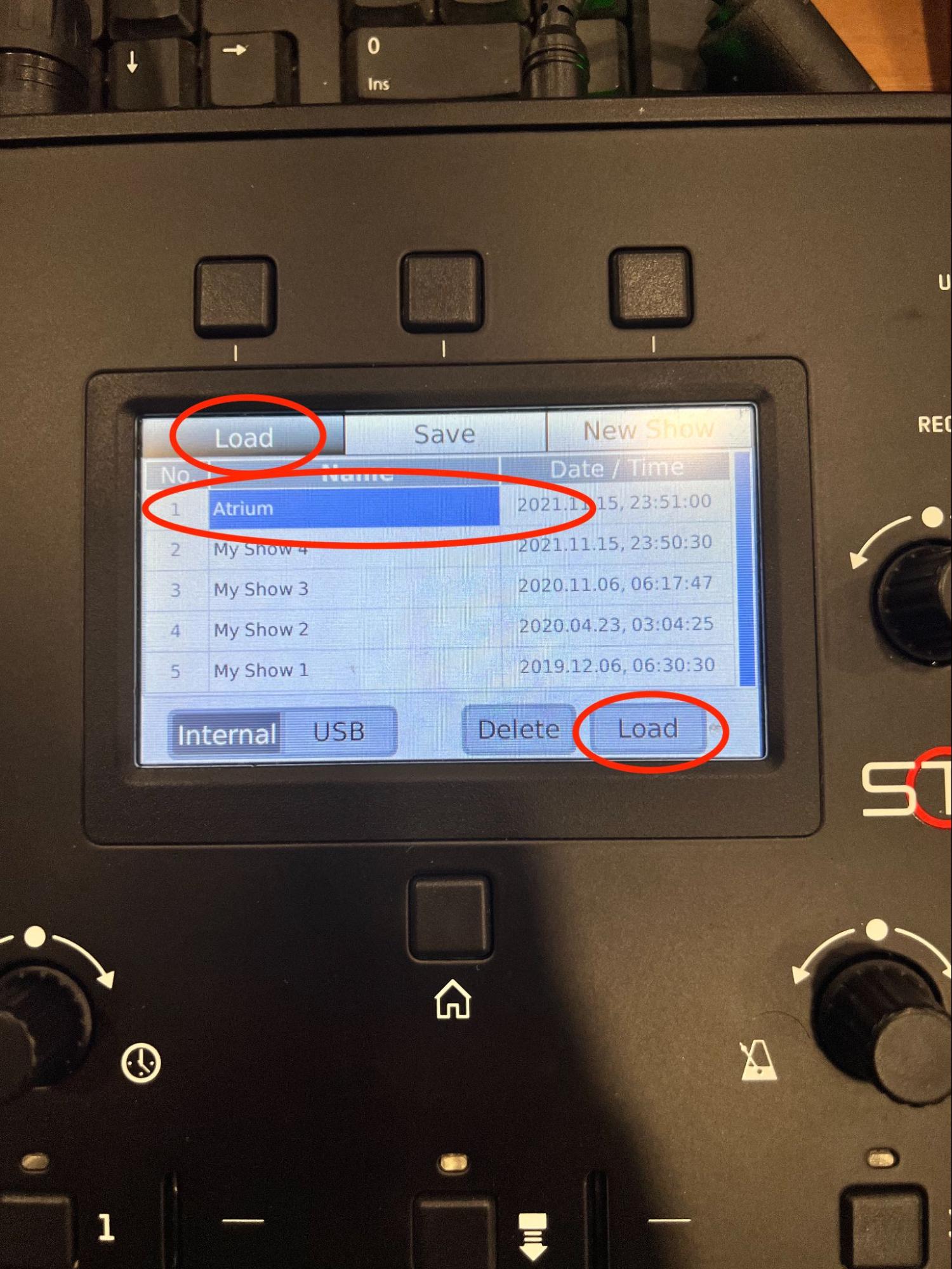

Stage CL load screen with the Atrium show file selected
